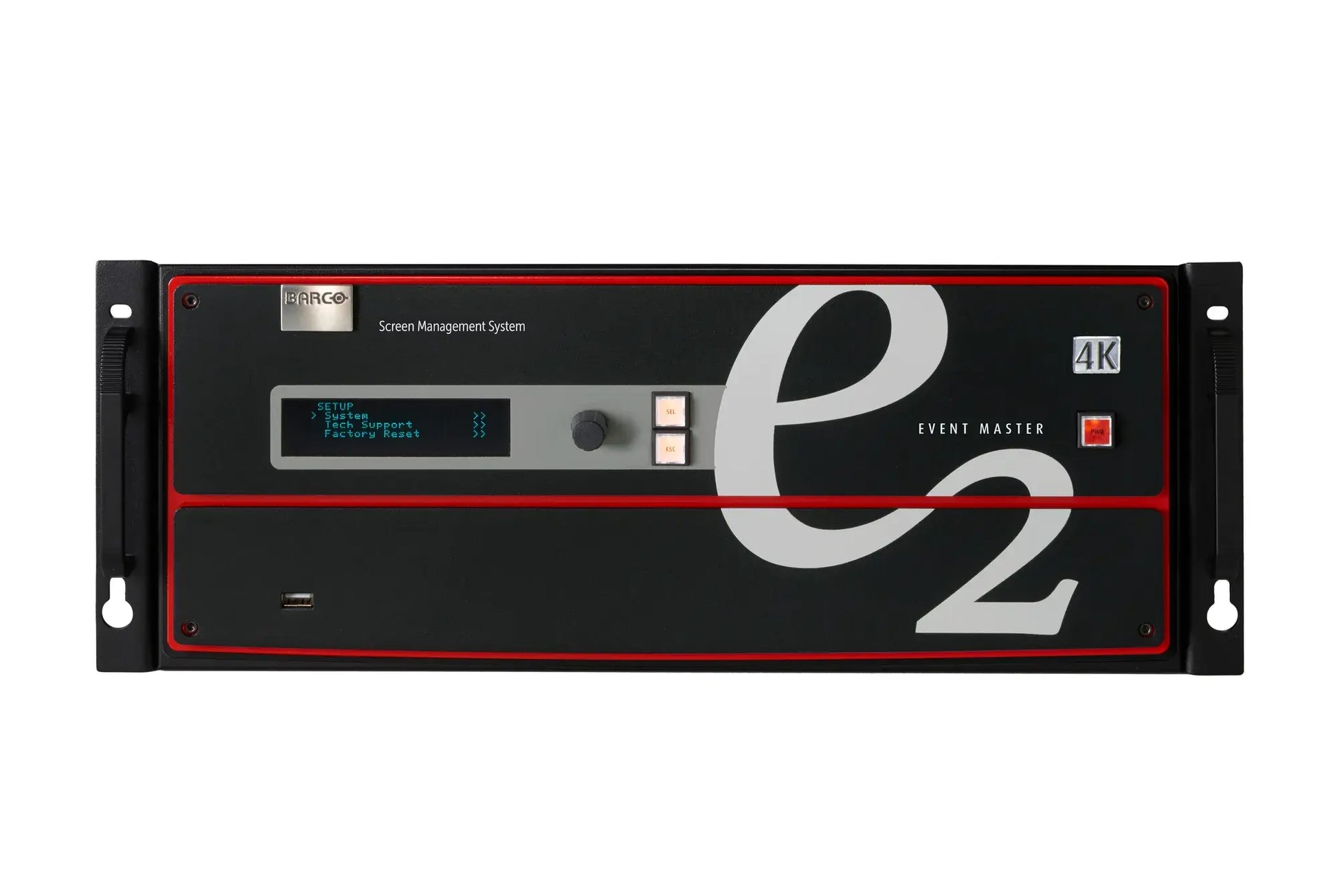

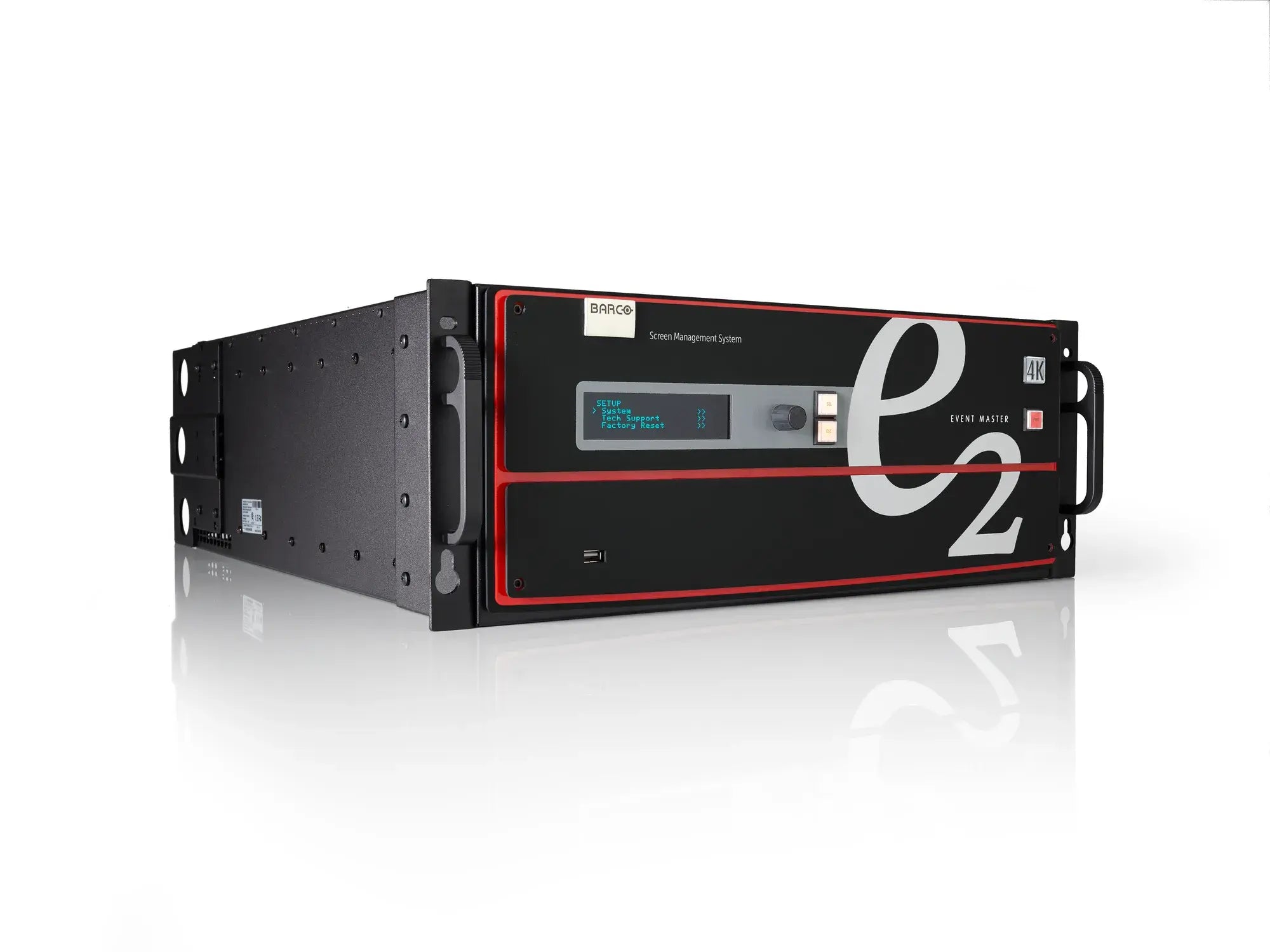

BARCO E2 Gen 2 Video Signal Processor - Switcher

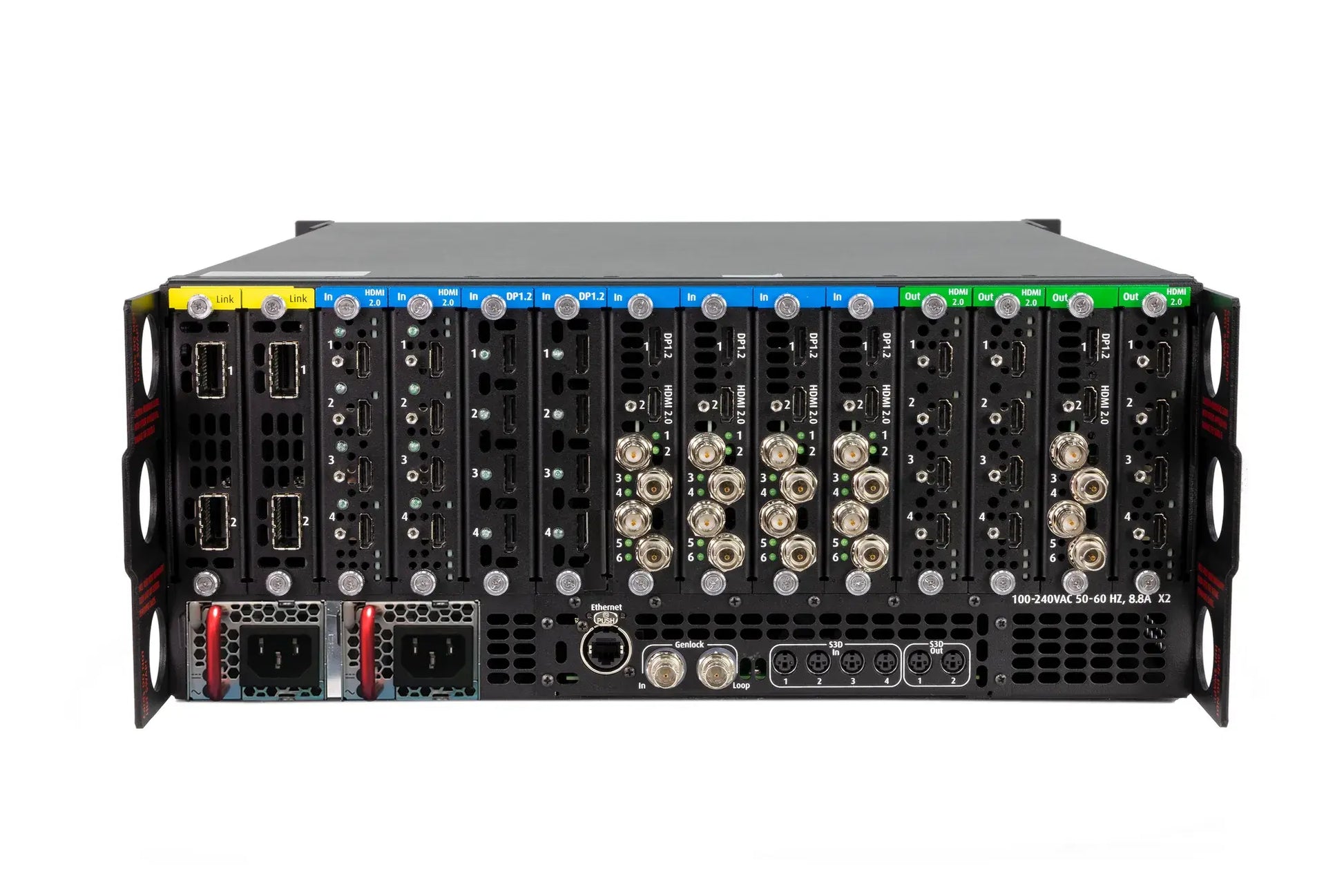

Configuration:

• Incl Gen2 Chassis
• 2x HDMI 2.0 Input
• 2x DisplayPort 1.2 Input
• 4x TriCombo Input  2x HDMI 2.0 Output
• 1x TriCombo Output
• 1x 4K MVR, 8 VPUs  - including US/EU power cord

Description:

• Native 4K input and output
  With native 4K input and output, the E2 provides impressive pixel processing power. Whether native or scaled inputs, two connectors or four, this HDCP-compliant system manages it all. With 28 inputs and 14 outputs (eight PGM, two Multi-viewer and four scaled Aux outputs), the E2 system offers full show control, including eight independent PIP mixers and a dedicated Multiviewer. Thanks to its linkable chassis, it can easily expand beyond these eight outputs without the need for additional external processing and routing to distribute the signals. And as it’s inputs and layers can also be expanded, the E2 will be capable of managing a blended screen with up to 32 4K projectors in the future.


• Simple servicing and control
  The E2 comes with a straightforward cross-platform user interface that provides touchscreen ergonomics. As the presets are stored on the chassis it enables easy control via third-party systems. Multiple users can control the system simultaneously, and the API allows third-party developers to create custom control programs and interfaces. Thanks to its modular design, users can simply add a new input or output card to support future signal interfaces. This modularity also ensures great serviceability, as users can easily swap a specific input or output card in the case of damage, without needing to ship or replace the entire box.


• Designed for life on the road
  Designed for the live event industry, the rugged E2 features a steel chassis that’s able to withstand the challenging conditions of life on the road. What’s more, it offers screen control in a compact form factor of only four rack units, which makes it easy to ship and install. And thanks to its modular cards and dual redundant power supplies, the E2 is extremely reliable and easy to service in the field.


• Layers, layers, layers
  The E2 offers an extremely flexible layer management system. The E2 starts with a pixel perfect, full resolution, unscaled background layer that is the same resolution as the screen destination. As an unscaled mixing background layer it does not use any of the valuable scaling layers. With up to 32 layers available in HD, the E2 can customize the layer configuration to meet the needs of your application. The layers provide either pip or key effects, and can be configured for HD, Dual Link (2560x1600 or 3840x1200 max), or 4K resolutions. Each destination gets dedicated layers, so you know exactly how many resources are available. The layers can also be configured as single layers with cut transitions, or two of the scalers can be combined to create a mixing layer. Each destination can support a combination of mixers, single layers, pips, keys, and various sizes of layers, all to create a single composited image on the screen.
• Warranty 3 years parts and labor
